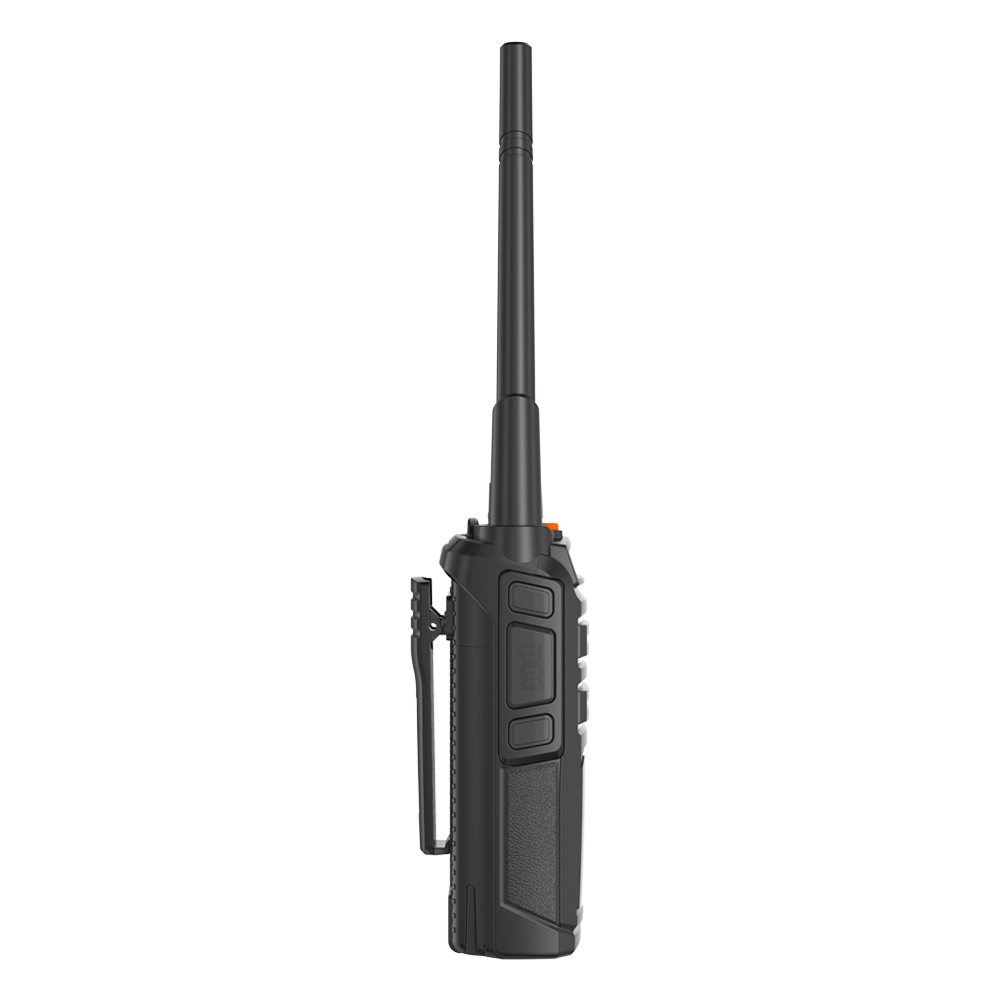

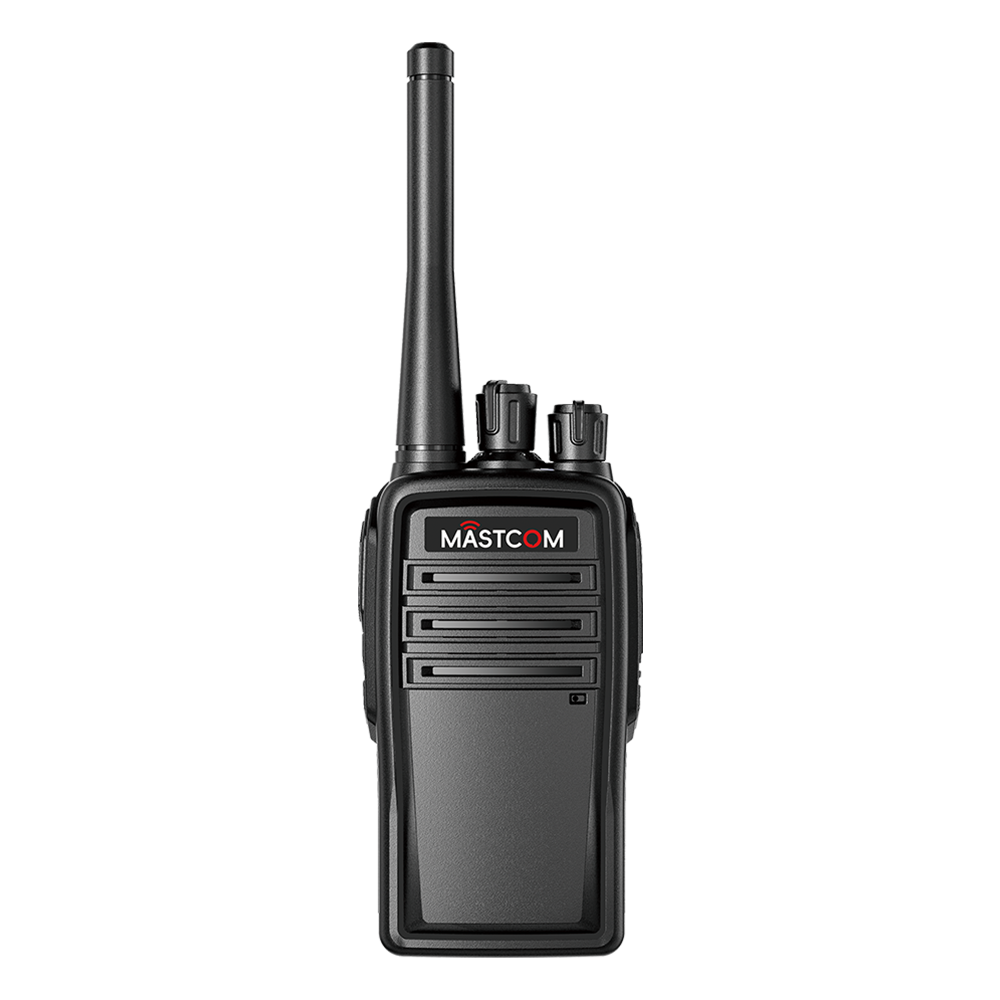

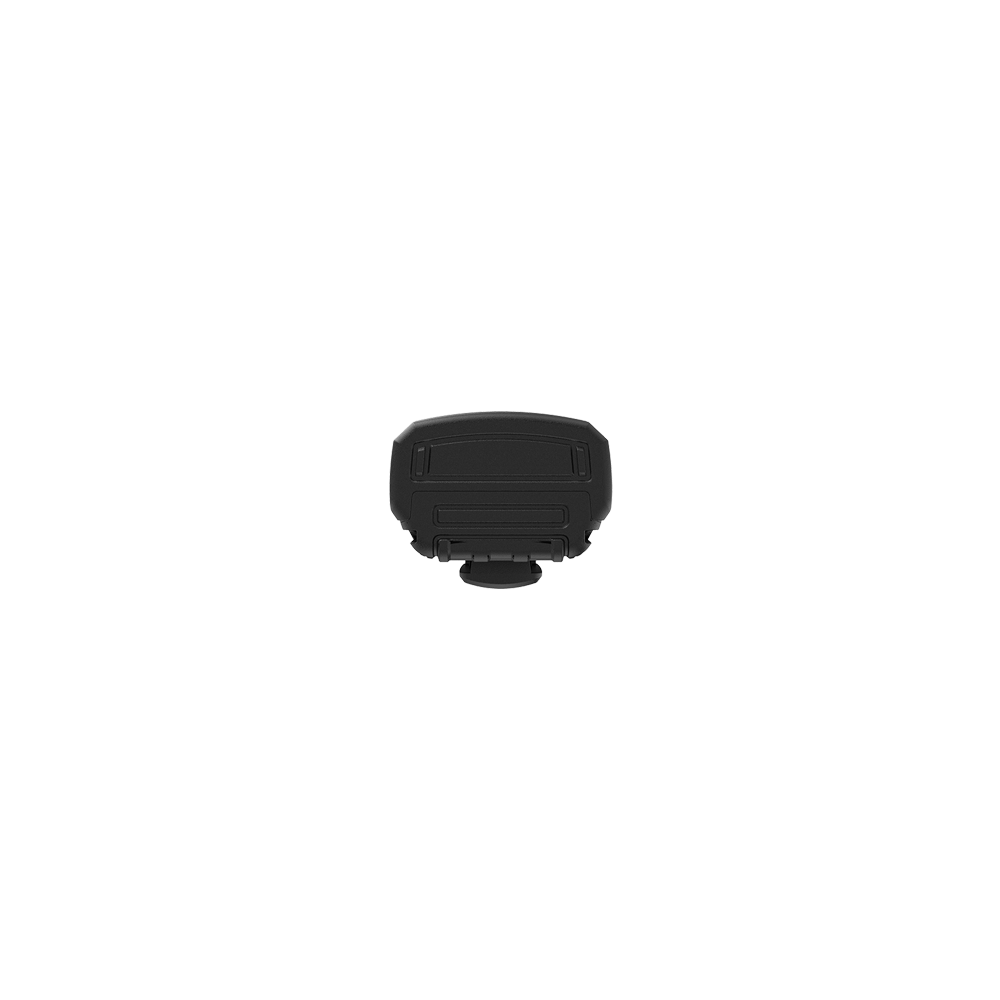

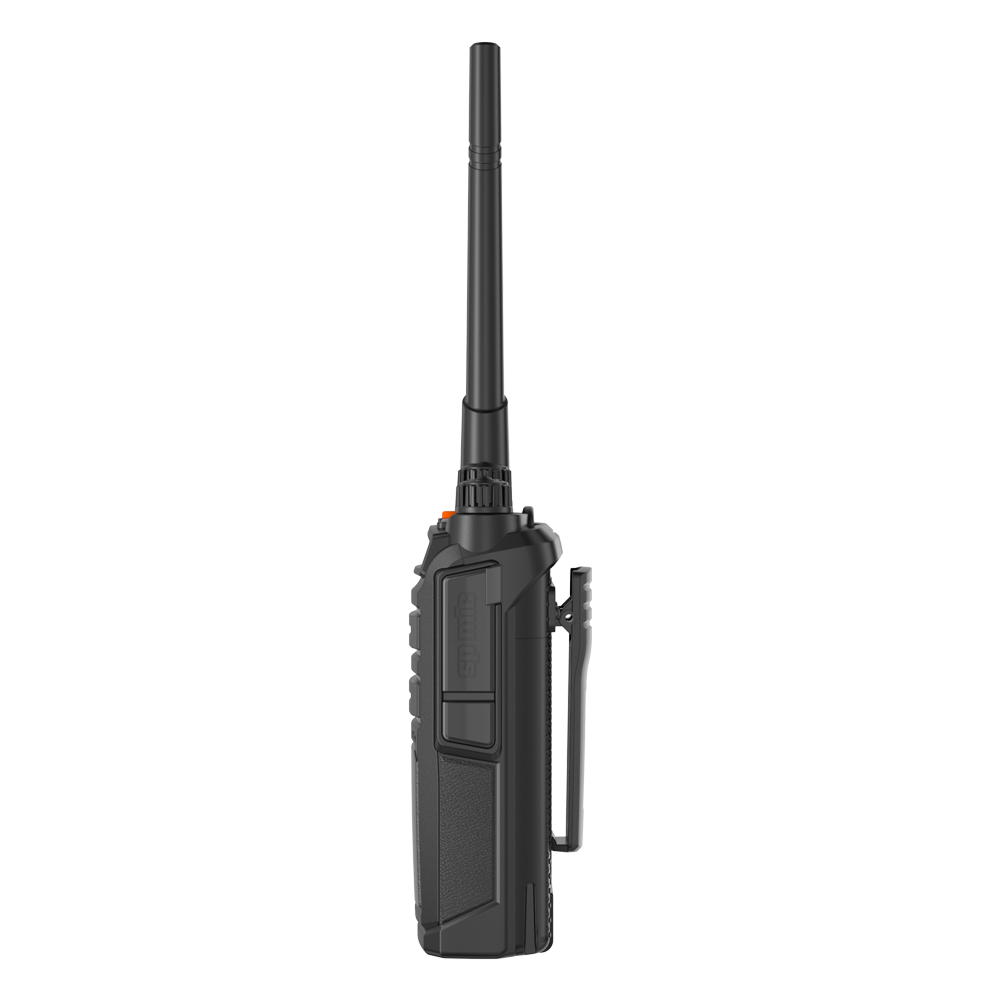

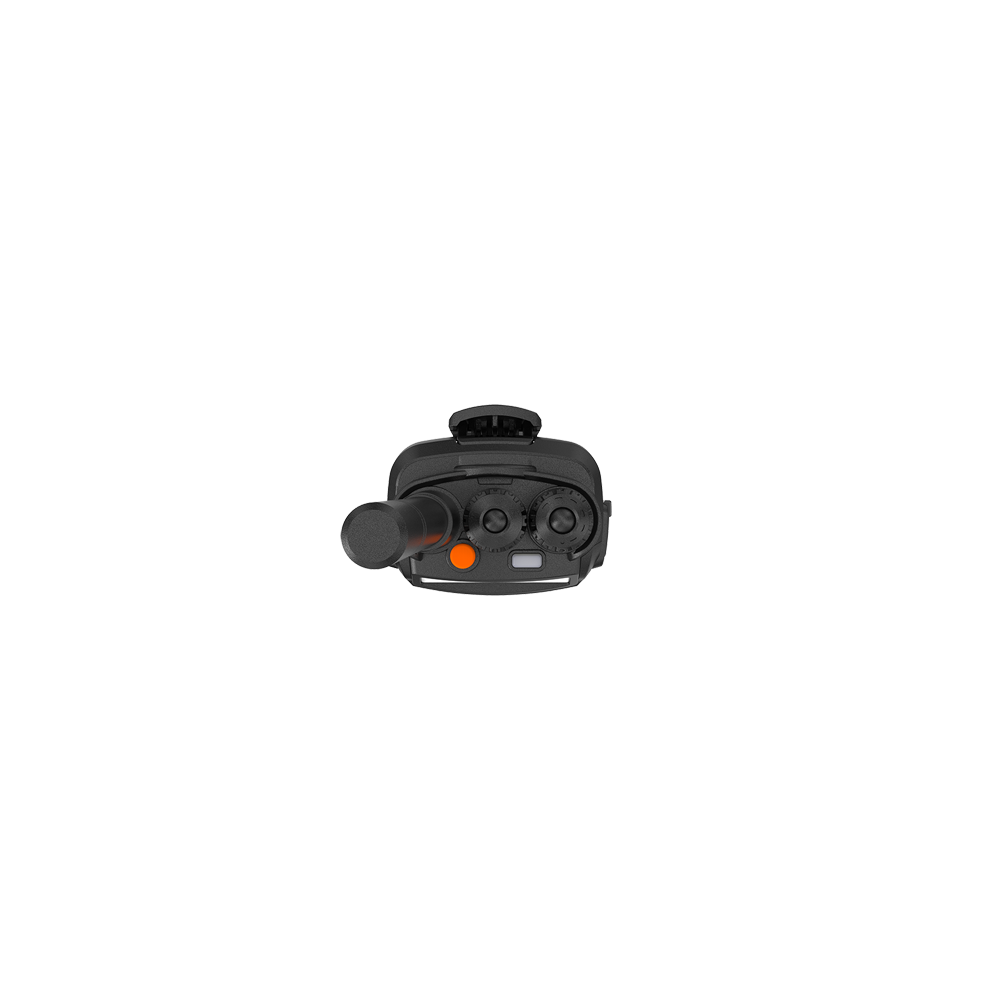

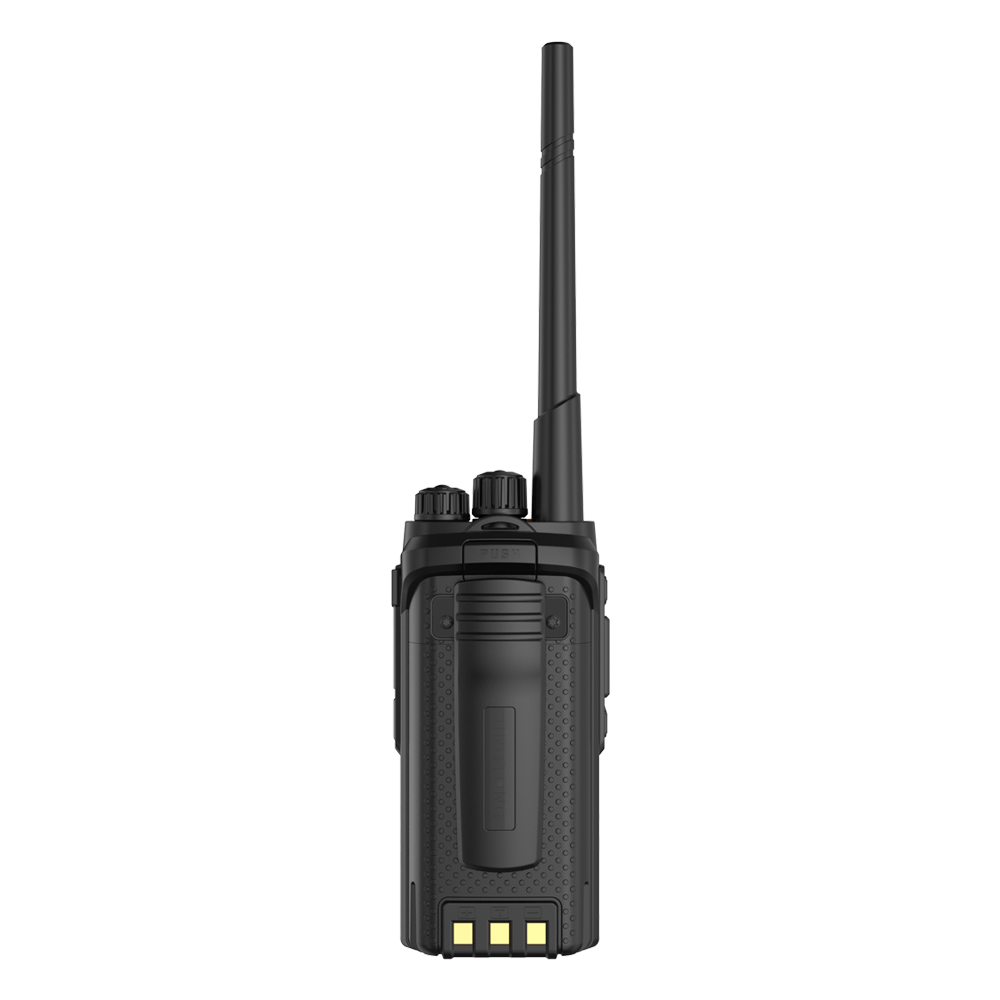

AG360 Compact Analog Portable Radio
The AG360 is a compact analog portable radio designed for lightweight and reliable daily communication. Featuring 2W output power, clear audio performance, VOX hands-free operation, wireless frequency cloning, battery save mode, and compact commercial radio design, AG360 is ideal for retail, hospitality, security, property management, and commercial operations.
Product Details
Key Features
AG360 is designed for simple and reliable commercial communication, combining compact portability, stable analog operation, clear audio performance, and practical daily communication features.
Compact Commercial Design
Compact and lightweight body design makes AG360 suitable for long working hours and convenient daily communication across commercial environments.
2W Stable Output Power
Provides stable 2W RF output for reliable short-to-medium range communication in retail, hospitality, security, and office environments.
Wireless Frequency Cloning
Supports one-key wireless frequency cloning for faster deployment and simplified channel synchronization between radios.
VOX Hands-Free Operation
Built-in VOX functionality enables voice-activated communication for convenient hands-free operation during daily work.
Clear & Stable Audio
Optimized audio performance helps ensure clear voice communication and stable daily operation in commercial communication scenarios.
3800mAh Battery Capacity
Equipped with a high-capacity 3800mAh battery to support extended standby time and reliable daily communication performance.
Specifications
Basic technical parameters of the AG360 Compact Analog Portable Radio.
| Brief Parameters | |
|---|---|
| Frequency Range | 136–174MHz / 400–470MHz |
| Operating Temperature | -20℃ ~ +50℃ |
| Channel Capacity | 16 channels |
| Communication Mode | Simplex or Double Frequency Simplex |
| Weight | 268g including battery pack |
| Battery Capacity | 3800mAh |
| Output Power | 2W |
| Modulation | FM (F3E) |
| Frequency Deviation | ≤ ±5KHz |
| Spurious Emission | ≤ -60dB |
| TX Current | ≤ 1.5A |
| Frequency Stability | ±2.5ppm |
| RX Sensitivity | < 0.18μV |
| Audio Sensitivity | ≥ 400mW |
| Standby Current | 72mA (36mA Power Save Condition) |
| Dimension | 101 × 52 × 35 mm |
Recommended Applications
AG360 is suitable for lightweight commercial communication scenarios requiring compact portability, stable operation, and simple team coordination.
