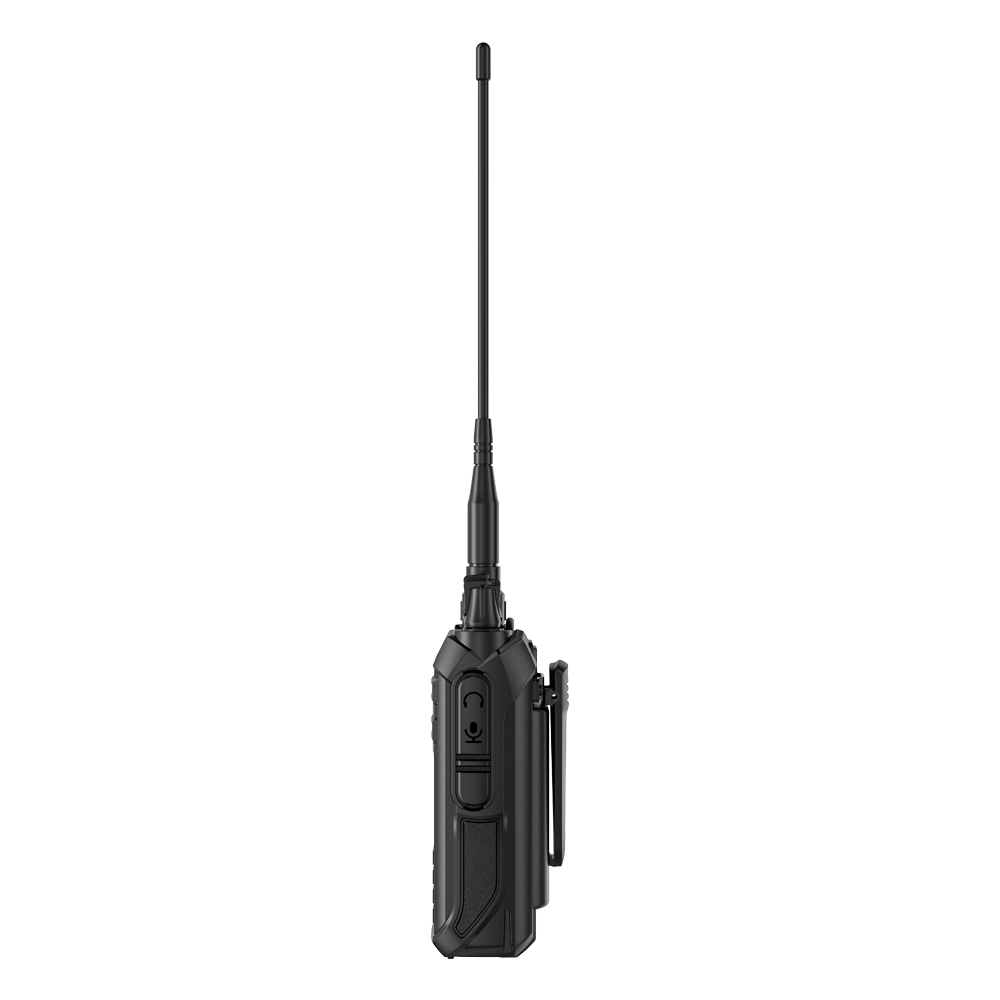

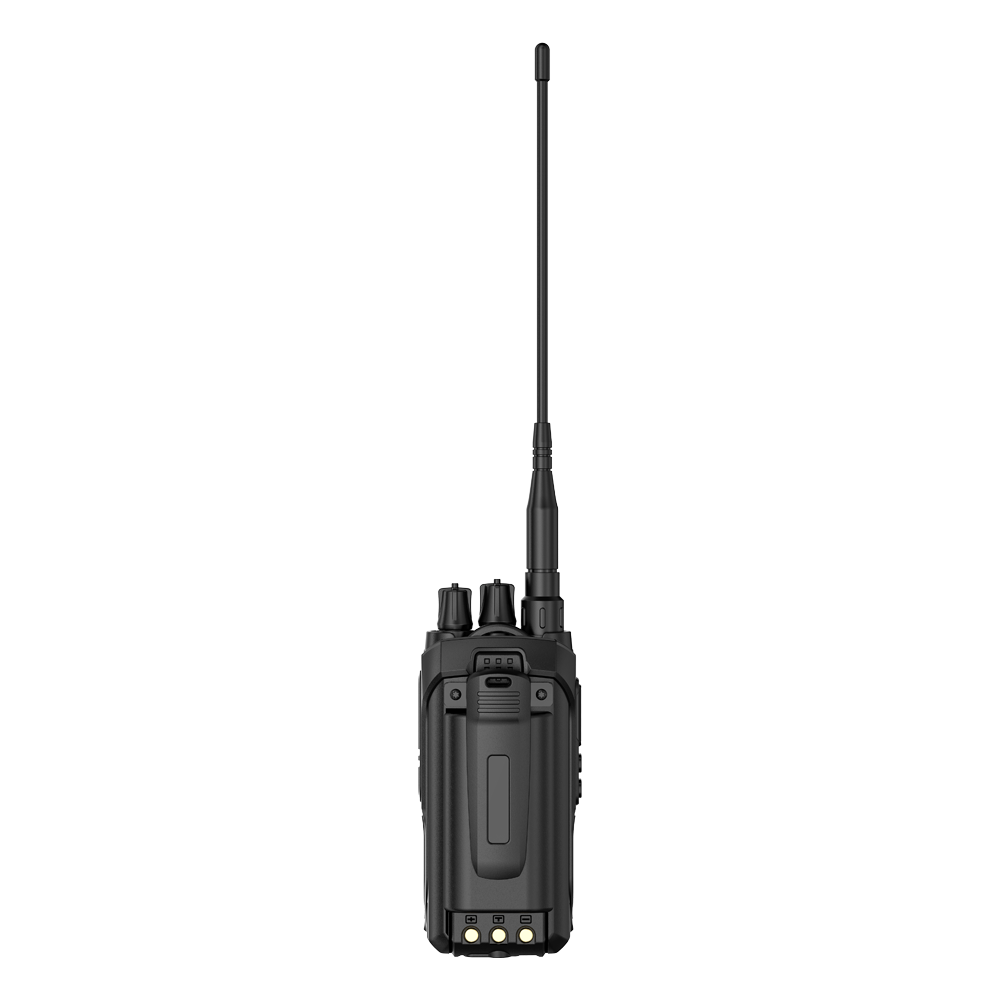

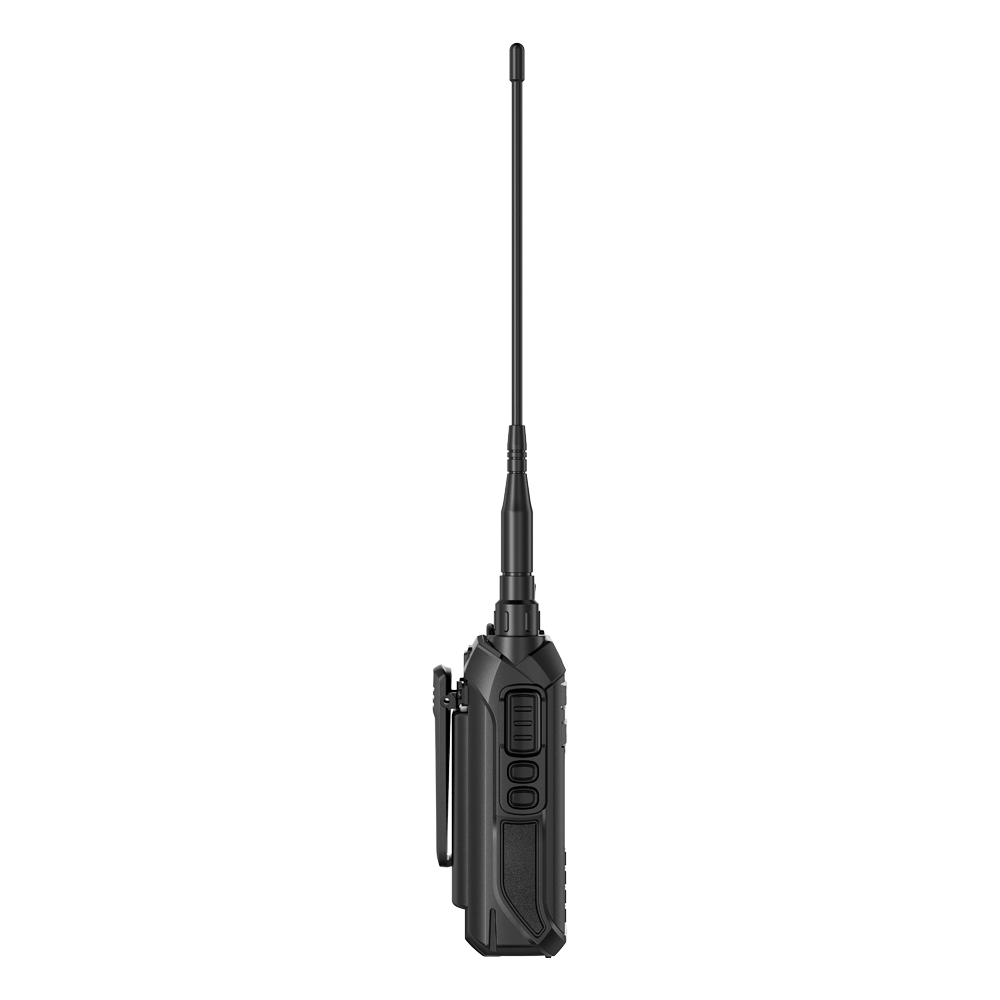

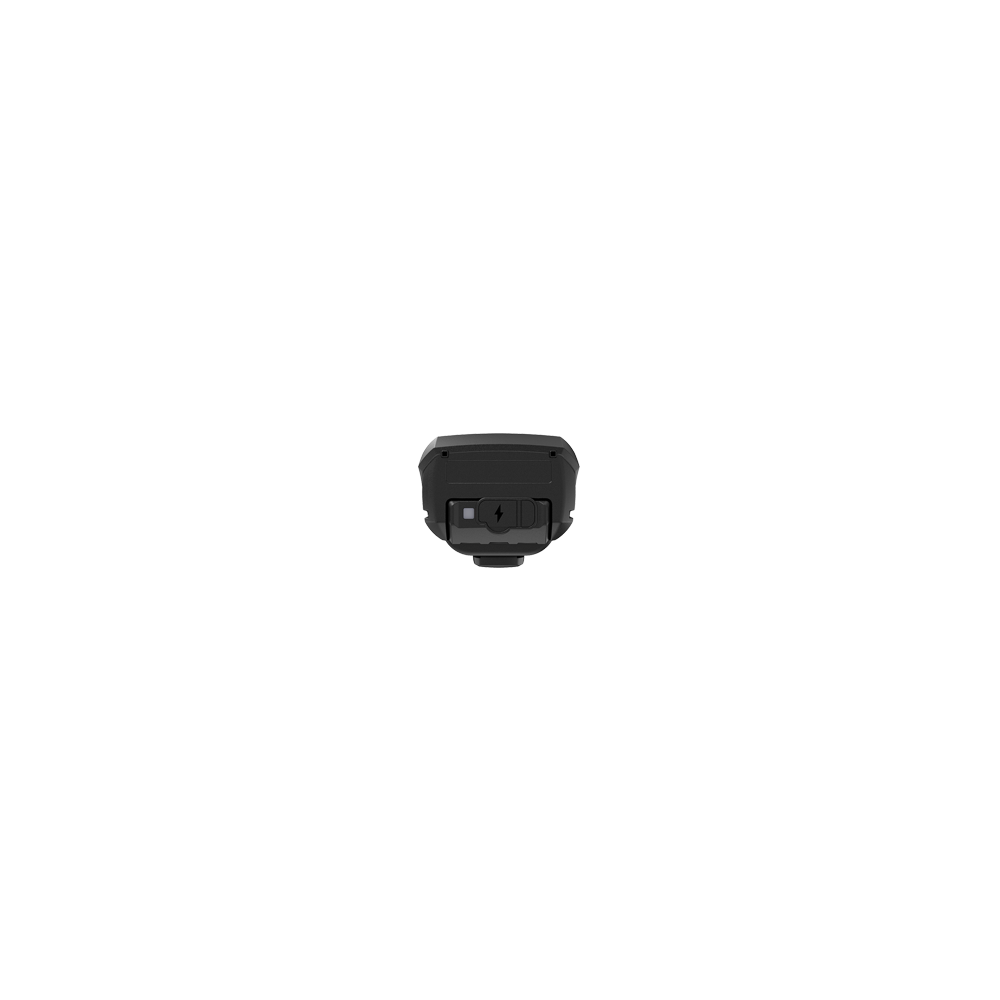

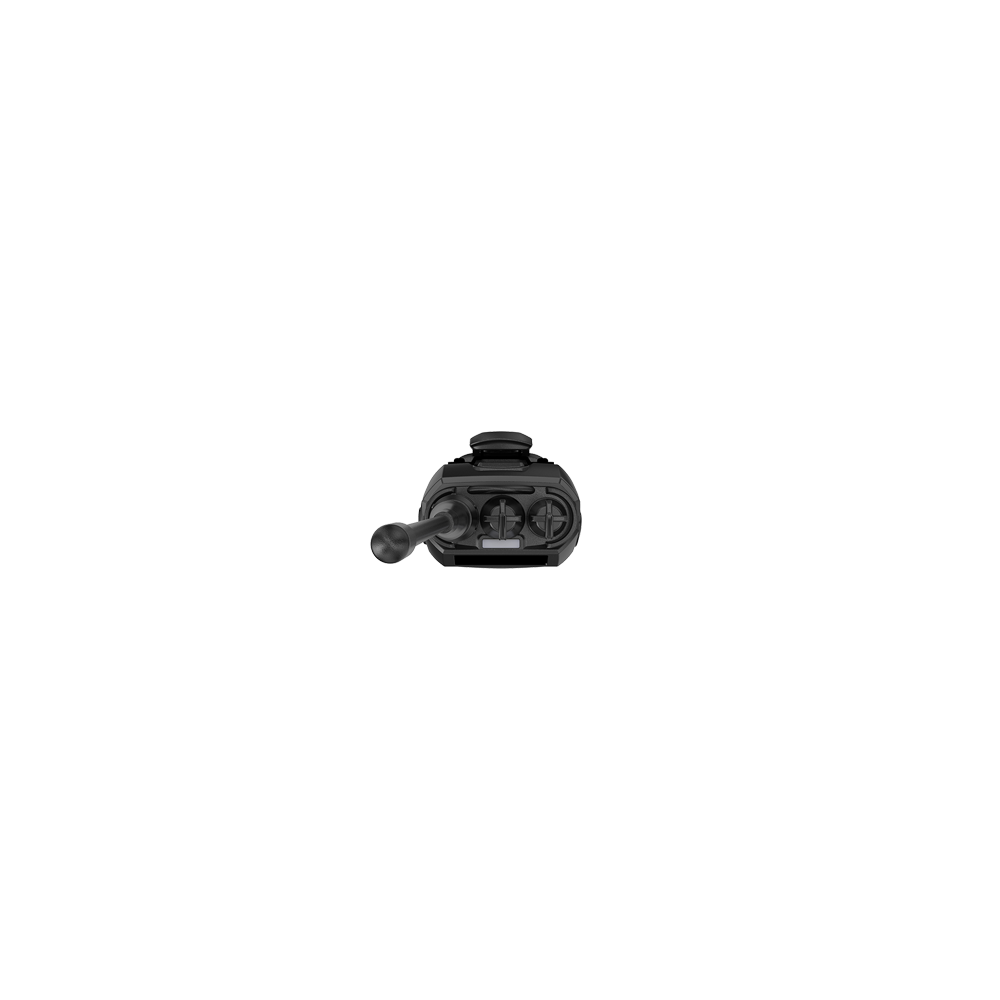

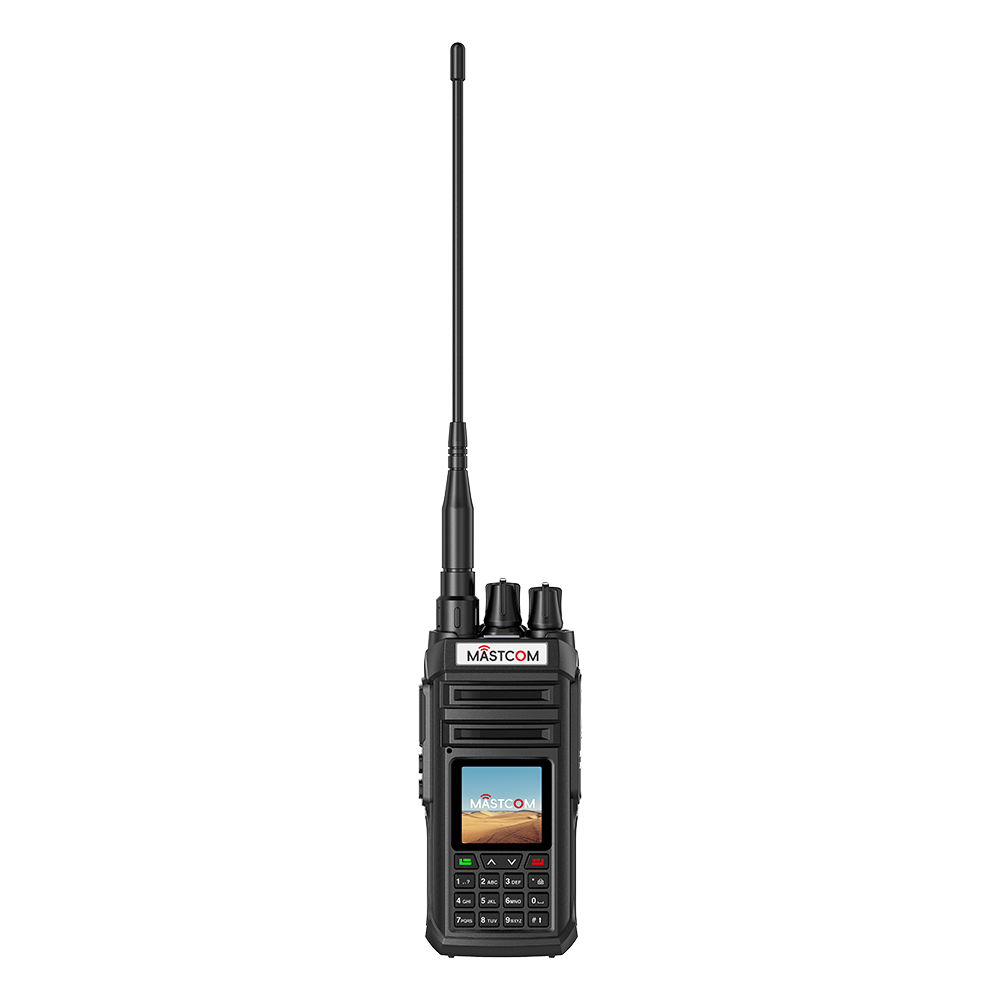

AG680 Dual-Band Portable Radio
The AG680 is a professional dual-band portable radio designed for outdoor communication, commercial operation, and advanced analog radio users. Featuring dual-band VHF/UHF operation, dual standby, aviation band monitoring, DTMF signaling, built-in scrambler, Type-C charging, and long battery endurance, AG680 delivers reliable communication performance for security, transportation, outdoor, logistics, and field operations.
Product Details
Key Features
AG680 is designed for advanced dual-band communication, combining VHF/UHF operation, aviation band monitoring, long battery endurance, and practical field communication features.
Dual-Band VHF/UHF Operation
Supports dual-band VHF and UHF communication for flexible deployment across outdoor, transportation, logistics, and commercial communication environments.
Dual Display & Dual Standby
Dual standby and dual display design allow users to monitor multiple channels simultaneously for more efficient communication management.
Aviation Band Monitoring
Supports AM aviation band monitoring from 108–136MHz, helping users improve situational awareness during outdoor and professional operations.
DTMF Signaling & ANI
Supports DTMF signaling, ANI identification, and programmable sub-tone settings for more flexible and professional communication management.
Built-in Scrambler & Privacy
Integrated scrambler function helps enhance communication privacy and improve secure communication capability during operation.
3800mAh Battery & Type-C Charging
Equipped with a high-capacity 3800mAh battery and Type-C charging support for extended operating time and convenient charging.
Specifications
Basic technical parameters of the AG680 Dual-Band Portable Radio.
| General | |
|---|---|
| Frequency Range |
VHF: 144–148MHz UHF: 430–440MHz |
| AM Aviation Band | 108–136MHz |
| Channel Capacity | 256 |
| Operating Voltage | 7.2V DC ±15% |
| Antenna Impedance | 50Ω |
| Channel Spacing | 12.5 / 25KHz |
| Working Temperature | -30℃ ~ +60℃ |
| Frequency Stability | ±2.5PPM |
| Dimension | 112 × 58 × 42 mm (without antenna) |
| Weight | 286g with battery |
| Battery | 3800mAh Li-ion |
| MIL Standard | MIL-STD-810C/D/E |
| Transmitter | |
| RF Power Output | ≤5W |
| Modulation | F3E |
| Modulation Distortion | <5% (300–3000Hz) |
| Max Frequency Deviation | <5KHz |
| FM Noise | ≤ -45dB |
| Receiver | |
| Sensitivity (12dB SINAD) | <0.18μV |
| Selectivity | 55dB |
| Adjacent Channel Selectivity | ≥70dB |
| Noise Respond | ≥60dB |
| FM Noise | -45dB / 40dB |
| Modulation Type | 16K0F3E |
| Audio Power Output | 500mW when distortion |
| Audio Distortion | <5% |
| Operating Bandwidth | ±7KHz |
Recommended Applications
AG680 is suitable for outdoor communication, transportation, logistics coordination, field operation, and advanced commercial radio communication scenarios.
