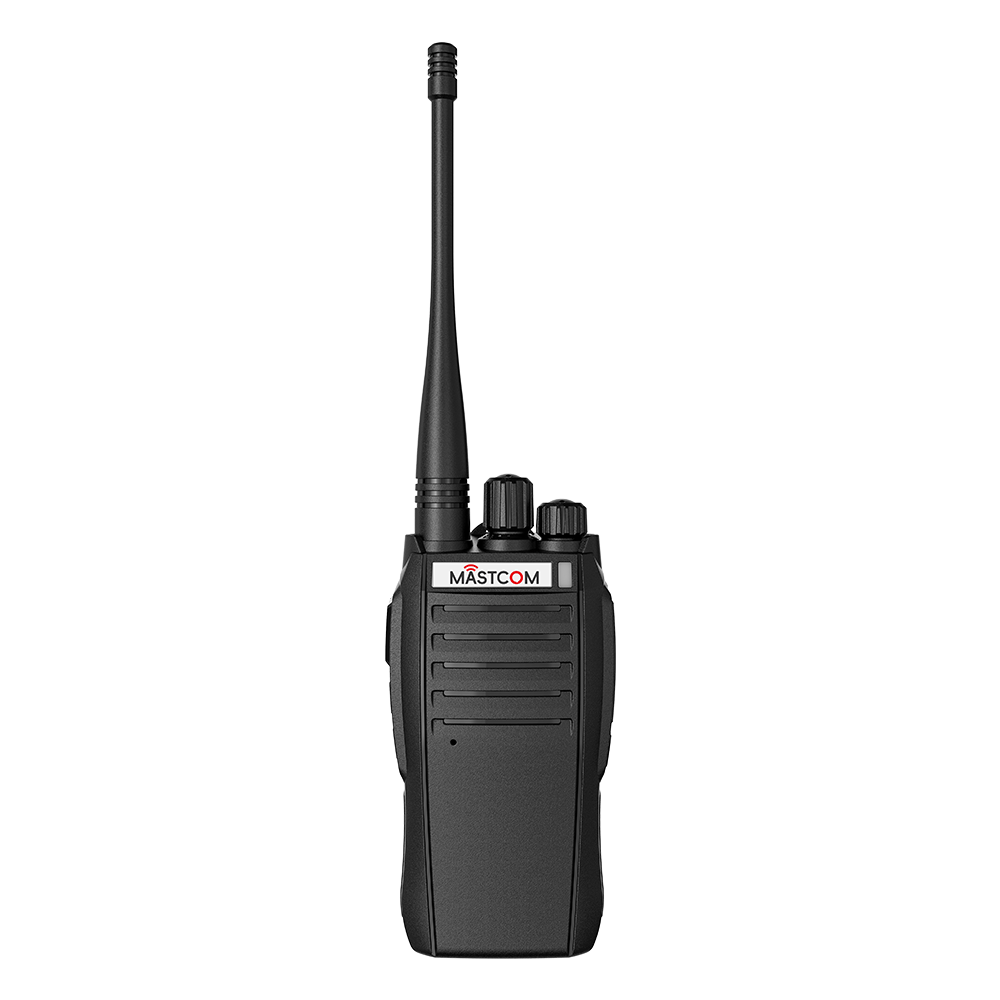

DM560 Professional DMR Portable Radio
The DM560 is a professional DMR portable radio designed for reliable digital and analog communication. Featuring secure digital voice, Type-C charging, dual-mode operation, programmable channels, repeater support, and rugged professional performance, DM560 is suitable for security, logistics, hospitality, construction, and commercial communication environments.
Product Details
Key Features
DM560 is designed for reliable and professional digital communication, combining dual-mode operation, secure voice capability, flexible programming, and compact portable performance.
Digital & Analog Dual Mode
Supports both DMR digital and analog communication modes, allowing smooth migration from traditional analog radio systems to modern digital communication.
Secure Digital Voice
Supports secure digital voice communication with encryption capability, helping improve communication privacy and operational security.
Type-C Charging
Equipped with convenient Type-C charging for flexible daily charging and easier deployment across mobile working environments.
32 Programmable Channels
Supports 32 programmable channels with dual-zone configuration for flexible communication management across teams and departments.
Repeater & Talk-Around Operation
Supports repeater operation and talk-around mode for more flexible communication in wide-area and direct radio-to-radio scenarios.
Compact Professional Design
Compact and rugged body design makes DM560 suitable for professional daily use in security, logistics, retail, hospitality, and industrial operations.
Specifications
Basic technical parameters of the DM560 Professional DMR Portable Radio.
| General | |
|---|---|
| Frequency Range | 400–480MHz |
| Extensible Range |
450–520MHz 136–174MHz 220–260MHz 245–245.9875MHz |
| Output Power | 5W |
| Channel Capacity | 32 (Double Area) |
| Battery | 7.4V 2600mAh Li-ion |
| Antenna Impedance | 50Ω |
| Storage Temperature | -40℃ ~ +85℃ |
| Receiver | |
| Channel Spacing | 12.5KHz / 25KHz |
| Frequency Stability | ±1.0ppm |
| Analog Sensitivity | 0.35uV / -116dBm (20dB SINAD) |
| Digital Sensitivity | 0.3uV / -117.4dBm (BER5%) |
| Adjacent Channel Selectivity |
TIA603: 60dB @12.5KHz ETSI: 60dB @12.5KHz |
| Intermodulation |
TIA603: 65dB ETSI: 65dB |
| Rated Audio Power | 1W |
| Audio Response | +1dB ~ -3dB |
| Audio Distortion | ≤3% |
| Transmitter | |
| Frequency Stability | ±1.0ppm |
| Adjacent Channel Power | -60dB @12.5KHz |
| Transmit Stray Radiation |
≥36dBm @1GHz ≥30dBm @1GHz |
| 4FSK Digital Modulation |
12.5KHz (Data only): 7K60FXD 12.5KHz (Data & Voice): 7K60FXE |
| FM Modulation | 12.5KHz: 11F0F3E |
| Digital Vocoder | AMBE+2™ |
| Dimension | 127 × 60 × 35 mm (without antenna) |
Recommended Applications
DM560 is suitable for professional users who require stable digital communication, secure voice capability, and reliable daily operation.
Interested in DM560 Professional DMR Portable Radio?
Contact us for product details, pricing, or OEM/ODM cooperation.
